超微SYS-220U-TNR服务器准系统 返回

产品详情

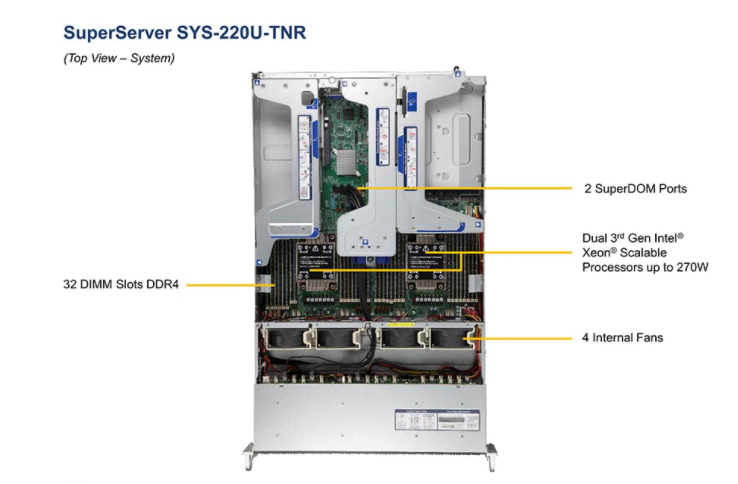

超微SYS-220U-TNR服务器准系统


Product SKUs

SYS-220U-TNR

  • SuperServer SYS-220U-TNR (Black Front & Silver Body)

Chassis

Form Factor

  • 2U Rackmount

Model

  • CSE-219U3TS-R1K62P-T


Dimensions and Weight

Height

  • 3.5" (89mm)

Width

  • 17.2" (437mm)

Depth

  • 27.76" (705.3mm)

Package

  • 9.96" (H) x 24.6" (W) x 45.43" (D)

  •

Weight

  • Net Weight: 37 lbs (16.8 kg)

  • Gross Weight: 63 lbs (28.6 kg)

Available Color

  • Black Front & Silver Body


Front Panel

Buttons

  • Power On/Off

  • UID button

LEDs


    • HDD activity

    • LAN1 activity

    • LAN2 acticity

    • Power Fail

    • Power status

    • System information (overheat/UID)


Expansion Slots

PCI-Express (PCI-E)

  • Slot 1: PCI-E 4.0 x16 FH, 10.5"L

  • Slot 2: PCI-E 4.0 x8 FH, 10.5"L

  • Slot 3: PCI-E 4.0 x8 Internal LP

  • Slot 4: PCI-E 4.0 x16 LP

  • Slot 5: PCI-E 4.0 x8 FH, 10.5"L

  • Slot 6: PCI-E 4.0 x8 FH, 10.5"L

  • Slot 7: PCI-E 4.0 x8 FH, 10.5"L

  • Slot 8: PCI-E 4.0 x8 FH, 10.5"L

Note

  • Optional RSC-W2-66G4 enables PCI-E x16 in slots 5, 7. Slots 6,8 will be disabled.


Drive Bays / Storage

Hot-swap

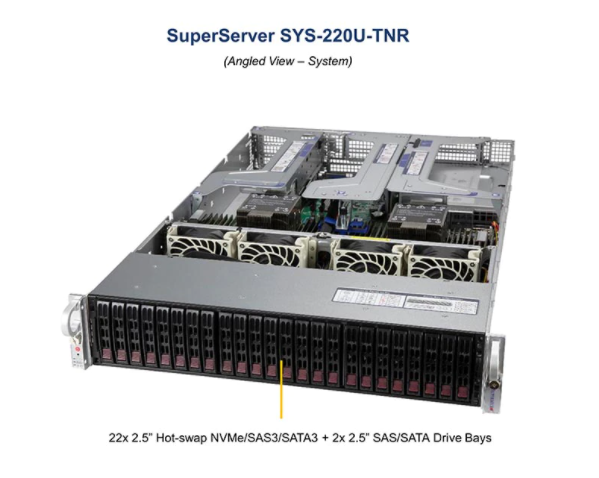

  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (22x 2.5" NVMe hybrid) (SAS/NVMe support requires additional parts. Please see the Optional Parts list.)



System Cooling

Fans

  • 4x 8cm heavy duty fans with optimal fan speed control

Air Shroud

  • 2 Air Shroud(s)


Power Supply

1600W Redundant Power Supplies with PMBus
Dimension

(W x H x L)

  • 73.5 x 40 x 203 mm

AC Input

  • 1000W: 100-127Vac / 50-60Hz

  • 1600W: 200-240Vac / 50-60Hz

+12V

  • Max: 83A / Min: 0A (100Vac-127Vac)

  • Max: 133A / Min: 0A (200Vac-240Vac)

12V SB

  • Max: 2.1A / Min: 0A

Output Type

  • AC-Input





Operating Environment


Environmental Spec.

  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)

  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)

  • Operating Relative Humidity:
       8% to 90% (non-condensing)

  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)



Motherboard



Super X12DPU-6

Processor/Cache

CPU

  • Dual Socket P+ (LGA-4189)

  • 3rd Gen Intel® Xeon® Scalable processors

  • 3 UPI up to 11.2GT/s

  • Support CPU TDP 270W *

Cores

  • Up to 40C/80T; Up to 60MB Cache

Note

  • *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
