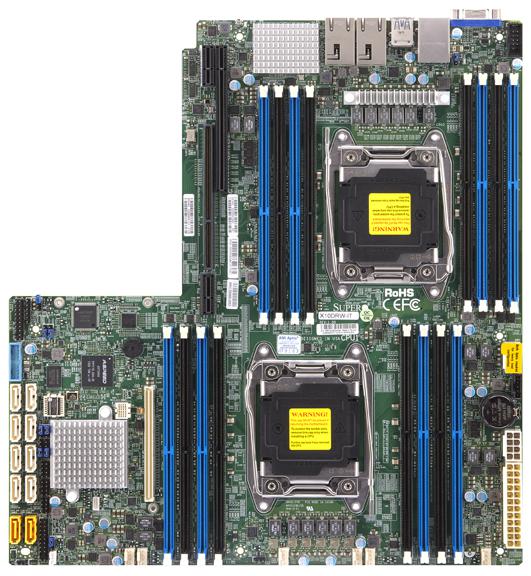

超微X10DRW-I 双路服务器主板 Intel C612 E5-2600V3/V4



Product SKUs

MBD-X10DRW-i
  • X10DRW-i


Physical Stats

Form Factor
  • Proprietary WIO

Dimensions
  • 12.3" x 13" (31.24cm x 33.02cm)


Processor/Cache

CPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.

  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s

Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache

Note
  • † BIOS version 2.0 or above is required

Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory

Memory Capacity
  • Up to 1TB 3DS ECC RDIMM, DDR4-2400MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB

  • LRDIMM: 32GB, 64GB

  • 3DS LRDIMM: 128GB

Memory Voltage
  • 1.2V

Error Detection
  • Corrects single-bit errors


On-Board Devices

Chipset
  • Intel® C612

SATA

  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI
  • Support for Intelligent Platform Management Interface v.2.0

  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

  • ASPEED AST2400 BMC

Network Controllers
  • Dual LAN with Intel® i350 Gigabit Ethernet Controller
    Single LAN with Virtual Machine Device Queues reduce I/O overhead
    Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics
  • Aspeed AST2400 BMC


Input / Output

SATA
  • 10 SATA3 (6Gbps) port

LAN
  • 2 RJ45 Gigabit Ethernet LAN ports

  • 1 RJ45 Dedicated IPMI LAN port

USB
  • 6 USB 3.0 ports (4 rear + 2 headers)

Video Output
  • 1 VGA port

Serial Port / Header
  • 1 COM Port (1 header)

TPM
  • 1 TPM Header
