超微M12SWA-TF 工作站主板E-ATX/AMD WRX80 返回

产品详情

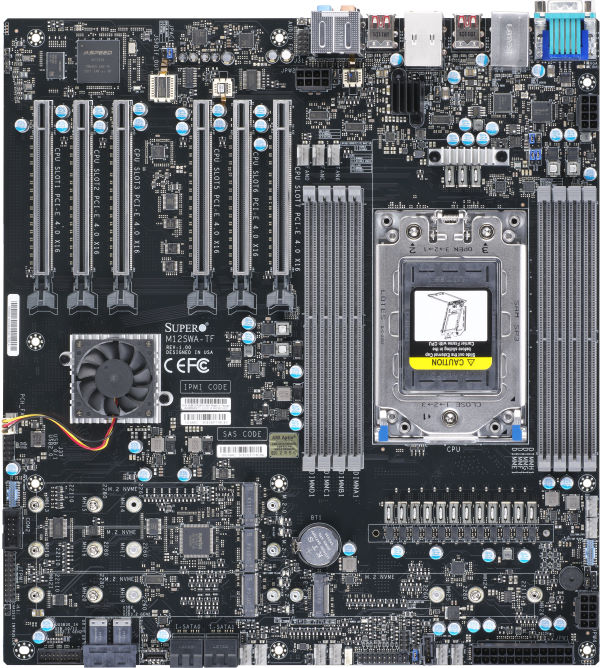

超微M12SWA-TF 工作站主板 E-ATX/AMD WRX80/AMD 3000WX



Product SKUs

MBD-M12SWA-TF

  • M12SWA-TF


Physical Stats

Form Factor

  • E-ATX

Dimensions

  • 12" x 13" (30.48cm x 33.02cm)


Processor/Cache

CPU

  • Single AMD Ryzen™ Threadripper™ PRO 3000WX Series Processor

  • Socket sWRX8/SP3

  • Supports CPU TDP up to 280W

Cores

  • Up to 64 Cores


System Memory

Memory Capacity

  • 8 DIMM slots

  • ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, LRDIMM and 3DS R-DIMM Memory

  • RDIMM up to 2TB, UDIMM up to 256GB

  • 8-channel memory bus

Memory Type

  • ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM, LRDIMM and 3DS R-DIMM Memory

  • DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Mhz

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset

  • AMD WRX80

SATA

  • AMD WRX80 controller for 4 SATA3 (6 Gbps)ports, Software RAID 0,1,5,10

Network Controllers

  • 10G LAN: Single LAN via Marvell AQC113C 10Gb controller

  • 1GbE LAN: Single LAN via via Intel® i210AT controller (shared with IPMI)

IPMI

  • Support for Intelligent Platform Management Interface v.2.0

  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

  • ASPEED AST2600 BMC

Audio

  • ALC4050H + ALC1220 7.1 Channel HD Audio

Graphics

  • ASPEED AST2600 BMC

  • VGA connector is dedicated for IPMI



Input / Output

SATA

  • 4 SATA3 (6 Gbps) ports

LAN

  • 1 RJ45 10GBase-T LAN port

  • 1 RJ45 GbE LAN port (shared with IPMI)

USB

  • 1 USB 3.2 Gen2x2 port (Type C, 20Gbps)

  • 5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps)

  • 5 USB 3.2 Gen1 ports (3 Type A, 1 via header)

  • 2 USB 2.0 via header

VGA

  • 1 VGA port (dedicated for IPMI)

Others

  • 1 COM port (rear)

  • 1 TPM 2.0 header


PCI-Express

  • 6 PCI-E 4.0 x16 slots


M.2

  • Interface: 4 PCI-E 4.0 x4

  • Form factor: 2280, 22110

  • Key: M-key

  • Software RAID 0,1,5,10 support


U.2

  • Interface: 2 U.2 Sockets

  • Software RAID 0,1 support


Chassis ( Optimized for M12SWA-TF )

Tower/4U Rackmountable
Tower/5U Rackmountable

  • SCGS7A-2000B
