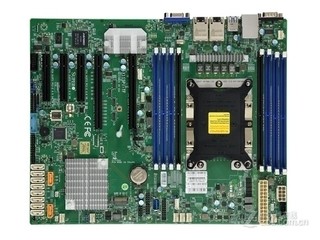

X11SPi-TF

ATX

12" x 9.6" (30.48cm x 24.38cm)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,

Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP

Up to 28 cores

BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots

2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

RDIMM: 8GB, 16GB, 32GB, 64GB

LRDIMM: 32GB, 64GB, 128GB

3DS LRDIMM: 64GB, 128GB, 256GB

1.2V

Corrects single-bit errors

Intel® C622

Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

ASPEED AST2500

Dual LAN with 10GBase-T with Intel® X722 + X557

Aspeed AST2500 BMC

10 SATA3 (6Gbps) port

2 RJ45 10GBase-T ports

6 USB 2.0 ports (2 rear + 4 headers)

5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

1 VGA port

2 COM Ports (1 rear, 1 header)

TPM Header

1 PCI-E 3.0 x16,

1 PCI-E 3.0 x16 (x16 or x8 ),

1 PCI-E 3.0 x8 (x0 or x8 ),

1 PCI-E 3.0 x8,

1 PCI-E 3.0 x4 (in x8 slot)

M.2 Interface: PCI-E 3.0 x4 and SATA

Form Factor: 2280, 22110

Key: M-Key

Double Height Connector
