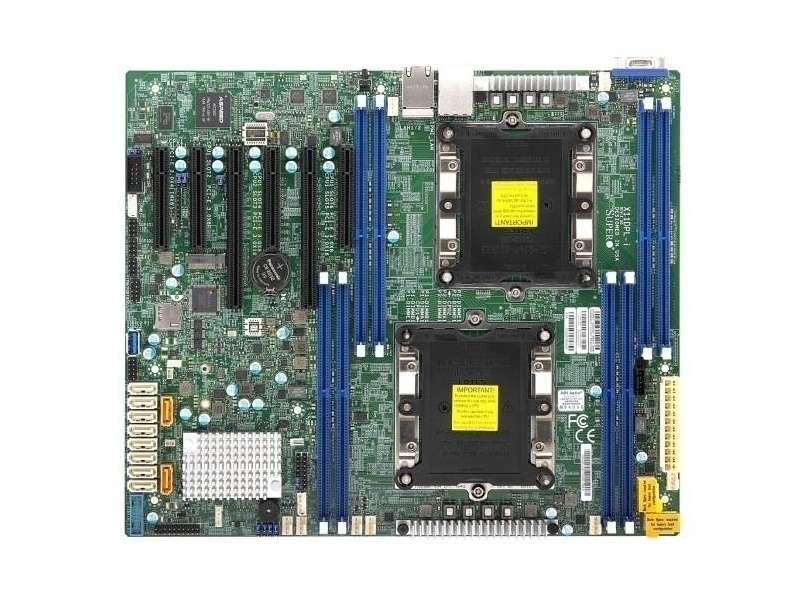

X11DPH-i

E-ATX

12" x 13" (30.48cm x 33.02cm)

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,

Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;

Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

RDIMM: 64GB

LRDIMM: 64GB

3DS LRDIMM: 128GB, 256GB

1.2V

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

Intel® C621

Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

ASPEED AST2500

Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512

10 SATA3 (6Gbps) ports

2 1GbE LAN ports

7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)

1 VGA port

1 COM Port (1 rear)

1 TPM Header
